Cisco Meraki
C9300X 8-port 1/10/25G SFP+ Network Module, w/MERAKI
C9300X 8-port 1/10/25G SFP+ Network Module, w/MERAKI
SKU:C9300X-NM-8Y-M
Note: License must be purchased with product.
CONTACT US for access to current promo pricing, special deals and volume pricing.
Quick Summary

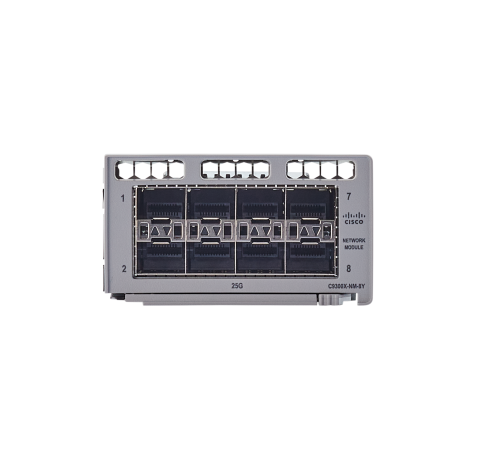

The Cisco Meraki C9300X-NM-8Y-M is an eight-port SFP28 uplink module that delivers up to 25 Gbps per port (200 Gbps aggregate) to any Catalyst 9300X-M access switch. Drop it into the empty network-module bay and instantly upgrade your business, office or retail network with cloud-managed, high-speed fiber connectivity—all without replacing the base switch. Perfect for organizations in the United States looking to buy Cisco Meraki from an authorized reseller and keep future bandwidth needs covered.
Use Cases
- Backhauling Wi-Fi 6/6E access points or dense IoT deployments
- High-speed server or storage uplinks inside branch offices and campuses
- Retail stores that need quick scaling for seasonal traffic spikes
- Aggregating multiple Catalyst 9300X switches into 25 G fiber rings
- Replacing ageing 10 G links while preserving existing cabling and transceivers
Key Features
- 8 × SFP28 slots supporting 1/10/25 GbE
- Non-blocking 200 Gbps total switching bandwidth
- Hot-swap design—no reboot or downtime
- Seamless visibility, alerts and zero-touch provisioning through the Meraki Dashboard
- Hardware-level integration with StackWise-1T and StackPower
- Energy-efficient architecture with dynamic power draw reporting
- Works with Cisco qualified DAC, AOC, SR, LR and ER optics
- Backed by Cisco Limited Lifetime Hardware Warranty and advanced replacement
Technical Specifications
- Ports: 8 × SFP28 (back-compatible with SFP+/SFP)
- Per-port speeds: 1 Gbps, 10 Gbps or 25 Gbps auto-negotiated
- Aggregate throughput: 200 Gbps full duplex
- Compatibility: Catalyst 9300X-12Y-M, 24Y-M, 24HX-M, 48TX-M, 48HX-M, 48HXN-M
- Hot-swap: Yes—field-replaceable while switch is powered
- Operating temperature: -5 ℃ to 45 ℃ (inherits host switch rating)
- Compliance: RoHS, WEEE, CE, RCM
- Part number: C9300X-NM-8Y-M
Comparison
| Module | Ports & Speed | Best For |
|---|---|---|
| C9300X-NM-8Y-M | 8 × 1/10/25 G SFP28 | High-speed fiber uplinks, Wi-Fi 6/6E backhaul |
| C9300X-NM-8M | 8 × 1/10 G Multigig (mGig) | Short-run copper to APs or edge servers |
| C9300X-NM-2C | 2 × 40/100 G QSFP28 | Core or aggregation layer links |
| C9300X-NM-4C | 4 × 40/100 G QSFP28 | Maximum backbone throughput |
FAQs
Is the module plug-and-play?
Yes. Slide the module into the open bay of a compatible Catalyst 9300X-M switch and it will be detected automatically in Cisco IOS-XE and the Meraki Dashboard.
Do I need new licenses?
No additional license is required beyond the existing Catalyst 9300-M Enterprise or Advanced subscription already applied to the switch.
Which transceivers are supported?
The module accepts Cisco SFP28/SFP+ optics and DAC/AOC cables approved for 25 G, 10 G and 1 G operation, making it easy to re-use current inventory.
Can I mix 25 G and 10 G links on the same module?
Absolutely—each port negotiates speed independently, so you can run 25 G to your core switch and 10 G to legacy equipment simultaneously.
Is the C9300X-NM-8Y-M available for immediate shipping in the United States?
Stock levels vary. As an authorized Cisco Meraki reseller, we provide real-time pricing and lead times—contact us for a quote.
Licensing and Support
The C9300X-NM-8Y-M inherits the license tier of its host switch—Enterprise for core functionality or Advanced for enhanced analytics and Adaptive Policy. Subscriptions are available in 1-, 3-, 5-, 7- and 10-year terms and include 24×7 Meraki TAC, next-business-day hardware replacement and continuous cloud firmware updates, ensuring your Cisco switches stay secure, compliant and up to date throughout their lifecycle.
Buy from an authorized Cisco Meraki Reseller in the United States
Cloudifi is a certified Cisco authorized reseller and supplier offering genuine Meraki equipment with full support and local warranty. Whether you’re purchasing a single C9300X-NM-8Y-M unit or a complete site bundle, we provide expert guidance, fast delivery, and competitive pricing in the United States.
Volume Pricing and Custom Quotes
Deploying at scale? We offer volume pricing, promo discounts, and fast turnaround on custom quotes for resellers, IT teams, and project integrators. As your trusted Cisco Meraki channel partner, we help you simplify procurement and deployment with expert-backed support across the full Cisco product range.
