C9300X 24x25GE SFP+, 715wac PS, w/MERAKI

$19,011.00 USD ex. Tax

Cisco Capital Finance is available on Hardware and License Purchases, and Licence Renewals over $10000.

To take advantage of current Promotional Pricing please Contact Us.

Promo pricing is NOT online!

Product Code : C9300X-24Y-M

Note: License must be purchased with product.

CONTACT US for access to current promo pricing, special deals and volume pricing.

Quick Summary

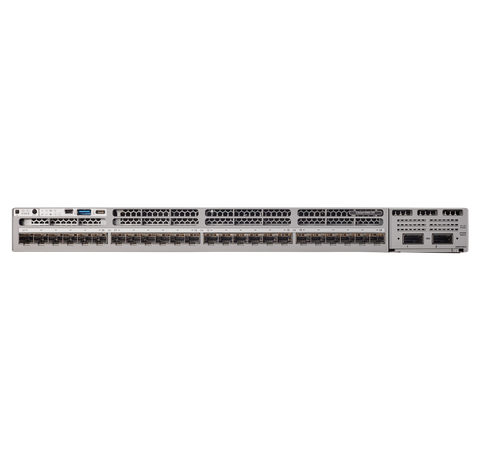

The Cisco Catalyst C9300X-24Y-M is a 24-port, cloud-managed fiber switch that delivers up to 2 Tbps of switching capacity and 1 Tbps stack bandwidth while letting Australian businesses buy, deploy and monitor their network through the intuitive Meraki dashboard. Designed for modern office, retail and campus environments, this authorized-reseller model supports 1/10/25 Gbps SFP28 downlinks, hot-swappable uplink modules (40/100 Gbps or 1/10/25 Gbps) and advanced Layer-3 services—so you can scale performance without sacrificing simplicity. :contentReference[oaicite:0]{index=0}

Use Cases

High-density fiber aggregation for multi-gig Wi-Fi 7/6E access-point backhaul
Latency-sensitive workloads such as media production or financial trading floors
Secure segmentation for mixed IoT, guest and corporate traffic via Adaptive Policy
Branch or headquarters stacking (up to eight switches) with 1 Tbps ring for hit-less failover
Rapid deployment in retail chains that need zero-touch provisioning from the cloud

Key Features

24 × 1/10/25 Gbps SFP28 fiber access ports
Modular uplink bay—choose 8-port 25 G or 2-port 100 G QSFP28 modules to suit growth :contentReference[oaicite:1]{index=1}
1 Tbps hardware stacking (back-compatible 480 Gbps) with StackWise-1T cables :contentReference[oaicite:2]{index=2}
StackPower ring for pooled, redundant PSU power across up to four members :contentReference[oaicite:3]{index=3}
Layer 3 switching with static, OSPF and multicast routing plus DHCP services :contentReference[oaicite:4]{index=4}
Meraki cloud management: live topology, firmware scheduling and deep traffic analytics
Hardware-based MACsec & line-rate AES-256 IPsec for secure site-to-site encryption :contentReference[oaicite:5]{index=5}
Energy-efficient, hot-swap fans and dual 715 W AC supplies (second PSU optional) :contentReference[oaicite:6]{index=6}

Technical Specifications

Model ID: C9300X-24Y-M
Switching capacity: 2,000 Gbps (full-duplex) :contentReference[oaicite:7]{index=7}
Forwarding rate: 1,488 Mpps :contentReference[oaicite:8]{index=8}
Stack bandwidth: 1 Tbps / 480 Gbps fallback :contentReference[oaicite:9]{index=9}
Ports: 24 × SFP28 (1/10/25 G) + 2 × stack + 1 × 10/100/1000 Mgmt
Power: 715 W default PSU; typical 139.6 W idle / 243.7 W max draw :contentReference[oaicite:10]{index=10}
Dimensions (W×D×H): 17.5 in × 20.7 in × 1.73 in (44.5 × 52.6 × 4.4 cm) :contentReference[oaicite:11]{index=11}
Weight: 16.2 lb (7.35 kg) with PSU :contentReference[oaicite:12]{index=12}
Operating temp: –5 °C to 45 °C; 5 %–90 % RH non-condensing :contentReference[oaicite:13]{index=13}
Compliance: FCC Class A, CE, RCM (US/NZ) and full lifetime hardware warranty

Comparison

Model	Downlink Ports	Uplink Module	Switching Capacity	Stack Bandwidth	PoE Support
C9300X-24Y-M	24 × 1/10/25 G SFP28	8 × 25 G or 2 × 100 G	2 Tbps	1 Tbps	N/A (data only)
C9300X-24HX-M	24 × 1/2.5/5/10 G mGig RJ45	8 × 25 G or 2 × 100 G	880 Gbps :contentReference[oaicite:14]{index=14}	1 Tbps	90 W UPoE+
C9300-24T	24 × 1 G RJ45	4 × 1 G (fixed)	160 Gbps (typ.) :contentReference[oaicite:15]{index=15}	480 Gbps	N/A (data only)

FAQs

Does the C9300X-24Y-M provide PoE or UPoE power?

No. The 24Y-M model is a data-only fiber switch; if you need 90 W UPoE+ on every port consider the C9300X-24HX-M instead.

Which licenses are required to operate this switch in the Meraki dashboard?

Choose either LIC-C9300-24E for Enterprise features or LIC-C9300-24A for Advanced (adds Adaptive Policy, Encrypted Traffic Analytics and NetFlow). Terms are available in 1, 3, 5, 7 or 10 years. :contentReference[oaicite:16]{index=16}

What optics are supported?

The switch accepts Meraki/Cisco SFP and SFP28 modules from 1 G to 25 G, plus QSFP28 for 40 G and 100 G when the appropriate network-module is installed. For the full matrix refer to the Meraki SFP datasheet. :contentReference[oaicite:17]{index=17}

Can I stack it with non-Meraki Catalyst 9300X switches?

Yes. Hardware stacking is interoperable across Catalyst 9300X family members as long as all units run compatible IOS-XE firmware; Meraki management persona requires like-for-like licenses.

Licensing and Support

When you buy Cisco Meraki C9300X-24Y-M switches through our authorized reseller channel in the United States, you receive lifetime hardware replacement, 24×7 enterprise-class TAC support, and access to continuous cloud-delivered feature updates. Add the appropriate C9300X License to unlock either Enterprise or Advanced capabilities, and enjoy predictable subscription pricing that aligns with your business cash-flow. © Cisco 2025.

Buy from an authorized Cisco Meraki Reseller in the United States

Cloudifi is a certified Cisco authorized reseller and supplier offering genuine Meraki equipment with full support and local warranty. Whether you’re purchasing a single C9300X-24Y-M unit or a complete site bundle, we provide expert guidance, fast delivery, and competitive pricing in the United States.

Volume Pricing and Custom Quotes

Deploying at scale? We offer volume pricing, promo discounts, and fast turnaround on custom quotes for resellers, IT teams, and project integrators. As your trusted Cisco Meraki channel partner, we help you simplify procurement and deployment with expert-backed support across the full Cisco product range.

Cisco Meraki C9300X-M Family Datasheet

Type: Layer 3 Access Switches
