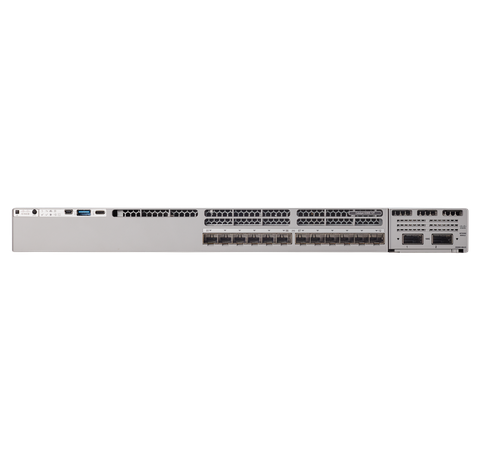

C9300X 12x25GE SFP+, 715wac PS, w/MERAKI
C9300X 12x25GE SFP+, 715wac PS, w/MERAKI
SKU:C9300X-12Y-M
Note: License must be purchased with product.
CONTACT US for access to current promo pricing, special deals and volume pricing.
Quick Summary
The Cisco Meraki C9300X-12Y-M is a 12-port, cloud-managed fiber switch designed for businesses that need high-speed aggregation without PoE. With 1 Tbps stacking, modular 10/25/40/100 Gb uplinks and Meraki Dashboard management, it delivers enterprise performance in offices, retail sites and branch networks across the United States. Buy with confidence from an authorized Cisco Meraki reseller and enjoy simple licensing, transparent pricing and local support.
Use Cases
- Aggregation for Wi-Fi 6/6E access-point deployments in campuses or large offices
- High-density fiber connectivity for retail or hospitality venues needing low-latency POS and CCTV traffic
- Server / storage top-of-rack switch in compact data rooms where noise and footprint matter
- Secure segmentation of IoT and guest devices via Adaptive Policy in distributed enterprises
Key Features
- 12 × 1/10/25 Gb SFP28 ports for flexible fiber links
- 1 Tbps dedicated hardware stacking (up to 8 switches)
- Modular uplink slot – choose 8 × SFP28 (1/10/25 Gb) or 2 × QSFP28 (40/100 Gb)
- Layer 3 routing (static, OSPFv2), multicast (PIM-SM) and VRRP warm-spare redundancy
- Comprehensive security: 802.1X, MACsec (link-level), DHCP snooping, Dynamic ARP Inspection, IPv4/IPv6 ACLs
- Meraki Dashboard: zero-touch provisioning, remote packet capture, topology, and firmware scheduling
- StackPower ring for shared PSU redundancy across up to four switches
- Fan and PSU hot-swap; field-replaceable, front-to-back airflow
Technical Specifications
- Switching capacity: 1 Tbps / 1000 Gbps
- Forwarding rate: 744.04 Mpps
- Stacking bandwidth: 1 Tbps (dual-ring) / 480 Gbps (legacy compatibility)
- Latency: Sub-microsecond cut-through (store-and-forward on congestion)
- Dimensions (H × W × D): 1.73″ × 17.5″ × 19.2″ (4.4 × 44.5 × 48.8 cm)
- Weight: 6.8 kg / 15 lb (with default PSU)
- Power: 715 W AC PSU; 97 W idle / 157 W max (switch only, no PoE)
- Operating temperature: -5 °C to 45 °C
- MTBF @ 25 °C: 265,650 hours
- Noise: <45 dB (A) typical at 40 °C
- Regulatory: FCC Class A, RCM, CE, RoHS-6
Comparison
| Model | Ports & Media | Switching Capacity | Forwarding Rate | PoE/UPoE+ | Ideal Scenario |
|---|---|---|---|---|---|
| C9300X-12Y-M | 12 × 1/10/25 Gb SFP28 | 1 Tbps | 744 Mpps | — | High-speed fiber aggregation |
| C9300X-24Y-M | 24 × 1/10/25 Gb SFP28 | 2 Tbps | 1488 Mpps | — | Larger fiber edge/core |
| C9300X-48TX-M | 48 × 1/2.5/5/10 Gb mGig RJ-45 | 2 Tbps | 1488 Mpps | No (data-only) | High-density copper access |
FAQs
Does the C9300X-12Y-M support PoE or UPoE+?
No – the 12Y-M is a fiber-only model without PoE. If you need PoE, consider the C9300X-24HX-M or 48HX-M.
Can I mix this switch in a stack with other Catalyst 9300 models?
Yes. Mixed stacking is supported with Catalyst 9300 and other Catalyst 9300X versions using StackWise-1T cables.
What uplink module should I choose?
For 25 Gb aggregation, select the 8-port SFP28 module. For 40/100 Gb backbone links, choose the 2-port QSFP28 module.
How do I license the switch in Meraki Dashboard?
Purchase either the Catalyst 9300-M Enterprise or Advanced license (1, 3, 5, 7 or 10 years). All Catalyst 9300/L/X-M devices in a co-term organization must share the same license tier.
Is pricing different for the United States?
Yes. Regional pricing and GST apply. Contact our team for the United States-specific quotes and lead times.
Licensing and Support
All Catalyst 9300X-M switches require an active Meraki license (Enterprise or Advanced) that unlocks features such as Adaptive Policy, NetFlow v10 and automatic firmware updates. As an authorized Cisco Meraki reseller, we provide flexible license terms, local RMA handling, and 24×7 technical assistance to keep your network running smoothly.
Buy from an authorized Cisco Meraki Reseller in the United States
Cloudifi is a certified Cisco authorized reseller and supplier offering genuine Meraki equipment with full support and local warranty. Whether you’re purchasing a single C9300X-12Y-M unit or a complete site bundle, we provide expert guidance, fast delivery, and competitive pricing in the United States.
Volume Pricing and Custom Quotes
Deploying at scale? We offer volume pricing, promo discounts, and fast turnaround on custom quotes for resellers, IT teams, and project integrators. As your trusted Cisco Meraki channel partner, we help you simplify procurement and deployment with expert-backed support across the full Cisco product range.
